our comprehensive range of valves

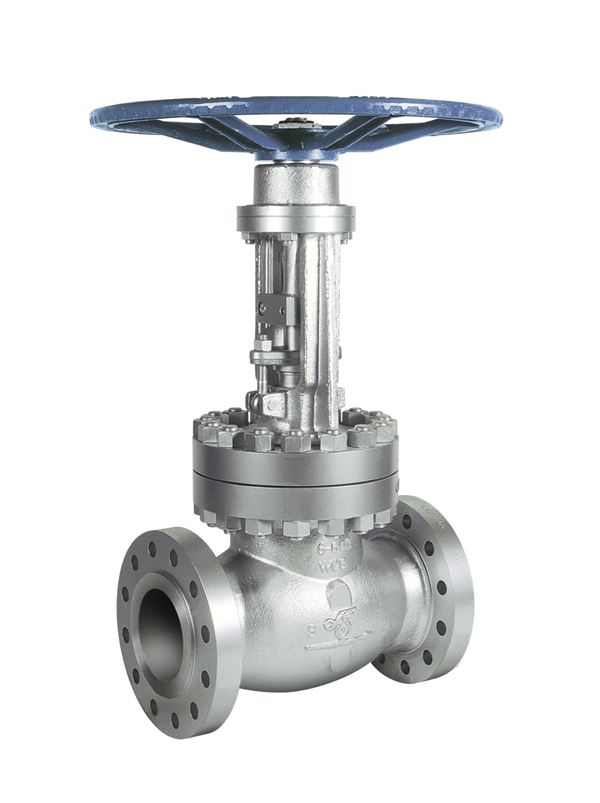

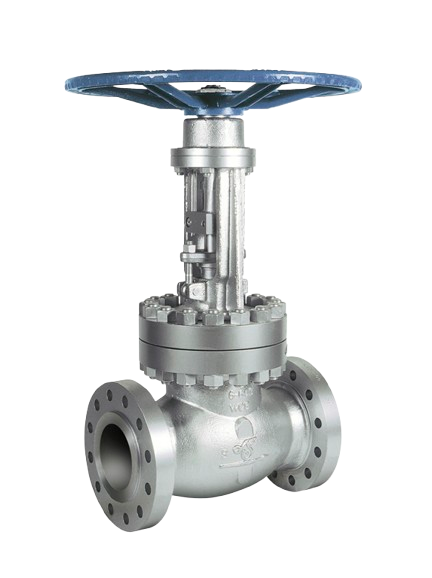

gate valve (RISING / NON-RISING STEM)
| Size Range | ½” to 24” (DN15 – Dn600) |
| End Connections | Flanged, Butt Weld, Socket Weld, Threaded |
| Materials |
Body: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel Gate & Seat: SS, Bronze, Stellite Packing: Graphite, PTFE |
| Applications | Water Supply Lines, Oil & Gas Transmission, Steam Lines, Power Plants, Fire Protection Systems |

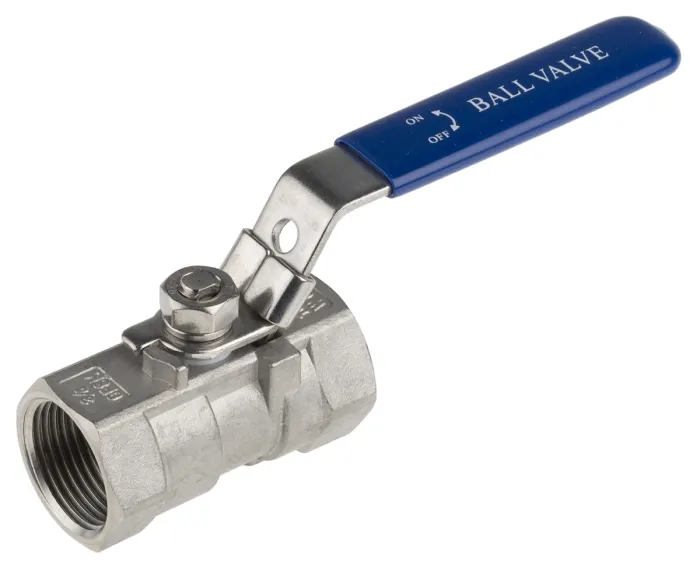

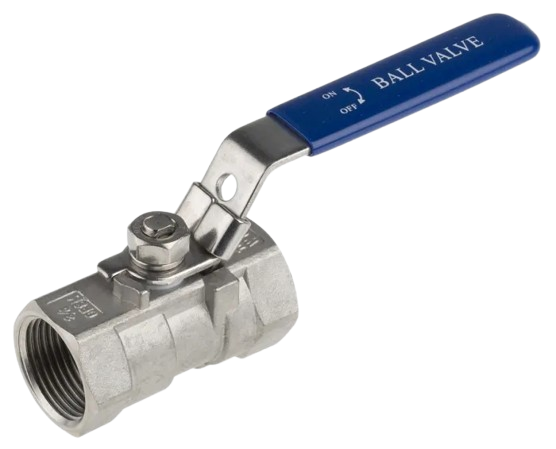

Ball valve (Floating / TRUNNION)
| Size Range | ¼” to 24” (DN8 – DN600+) |
| End Connections | Flanged, Butt Weld, Socket Weld, Threaded |
| Materials |
Body: Brass, Carbon Steel, Stainless Steel, PVC Ball: SS, Chrome-plated Steel Seat: PTFE, RTFE, PEEK, Metal |
| Applications | Oil & Gas Pipelines, Chemical & Petrochemical Plants, Water & Air Systems, Fire Protection, HVAC & Utility Lines |

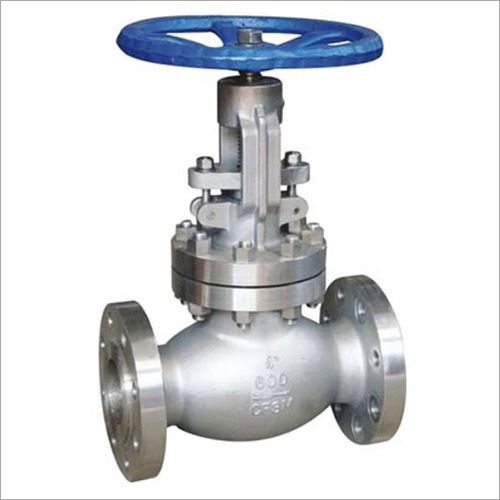

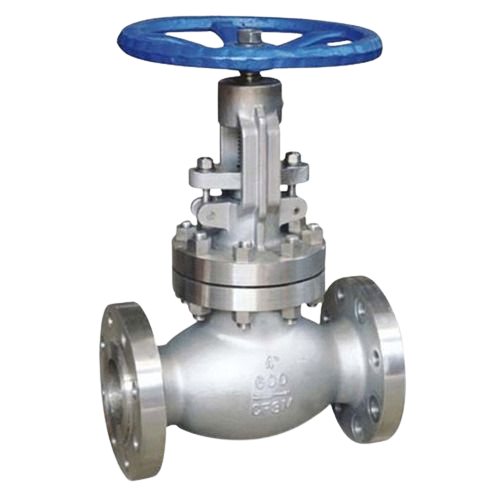

gLOBE valve (Z / Y / ANGLE TYPE)
| Size Range | ½” to 24” (DN15 – DN600) |
| End Connections | Flanged, Butt Weld, Socket Weld, Threaded |
| Materials |
Body: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel Gate & Seat: SS, Bronze, Stellite Packing: Graphite, PTFE |
| Applications | Steam Lines, Fuel Oil Systems, Cooling Water Lines, Chemical Processing, Power Plants, Instrumentation |

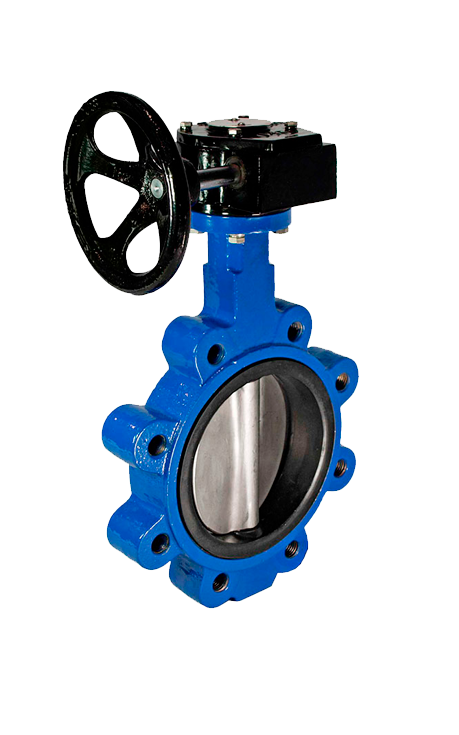

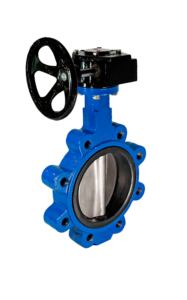

butterfly valve (wafer / lug / double flanged )
| Size Range | 1½” to 48” (DN40 – DN1200+) |
| End Connections | Wafer, Lug, Flanged |
| Materials |
Body: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel Disc: SS, DI, Bronze Seat: EPDM, NBR, PTFE, Metal |
| Applications | Water Supply & Distribution, HVAC Systems, Fire Fighting Lines, Chemical Plants, Power Plants, Wastewater Treatment |

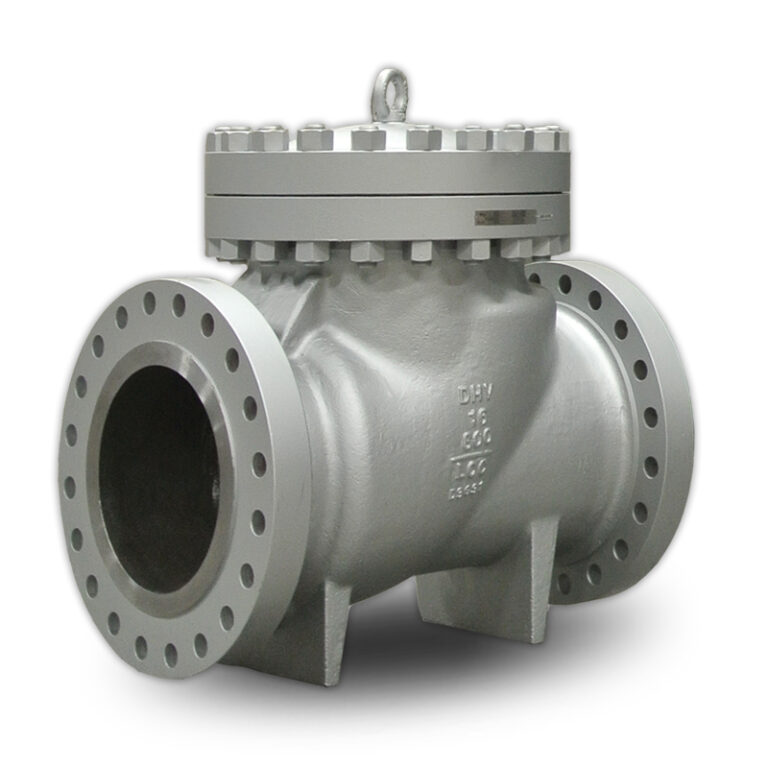

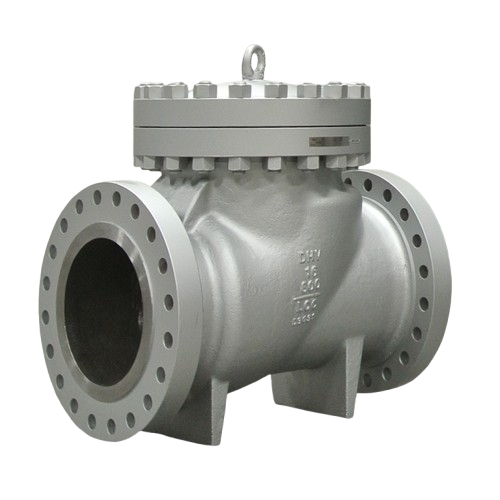

check valve (swing/ Dual Plate(Wafer) / Lift / Ball / Tilting Disc / Foot / Spring Loaded )
| Size Range | ½” to 24” (DN15 – DN600+) |
| End Connections | Flanged, Threaded |
| Materials |
Body: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel Disc: SS, CI, Bronze Seat: Metal, PTFE, Rubber |
| Applications | Pump Discharge Lines, Water Supply Systems, Oil & Gas Pipelines, Air & Gas Systems, Fire Protection Lines |

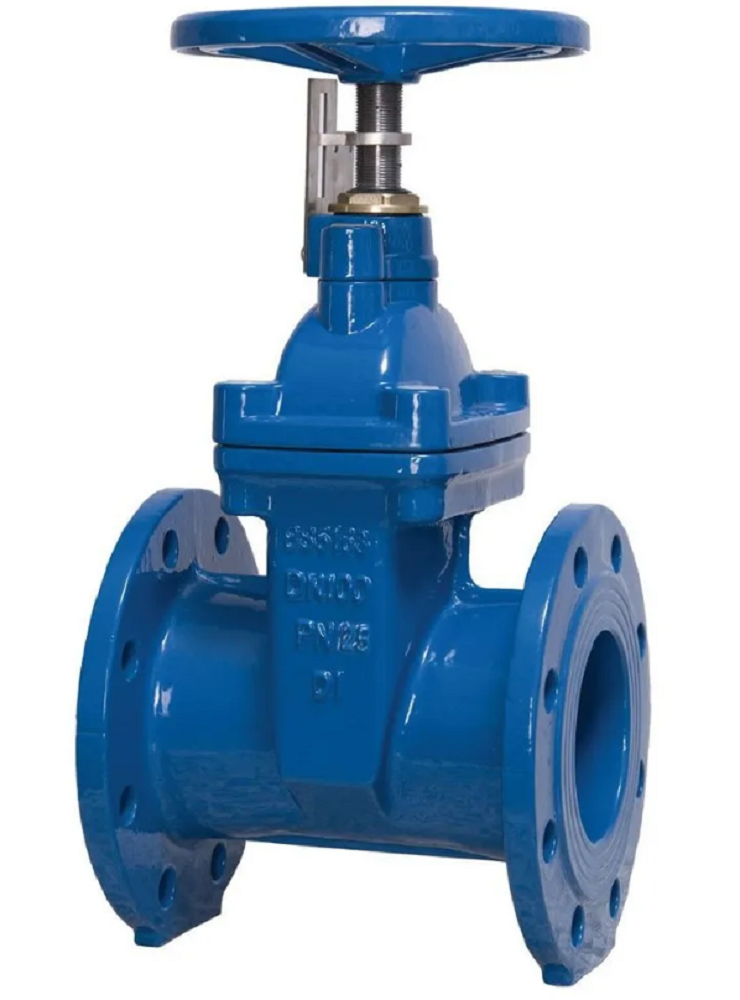

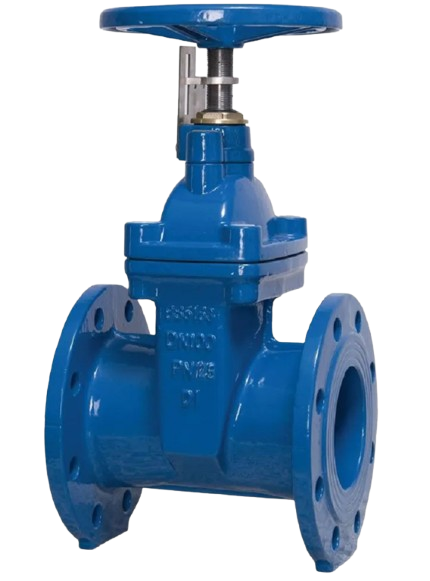

sluice (GATE) valve (RISING/ NON-RISING STEM )
| Size Range | 2” to 24” (DN50 – DN600+) |
| End Connections | Flanged, Butt Weld, Threaded |
| Materials |
Body: Cast Iron, Ductile Iron, Stainless Steel Disc: EPDM / NBR Lining Seat: Metal |
| Applications | Water Supply, Irrigation, Fire-fighting, Industrial Pipelines |
