Our Comprehensive Range of flanges

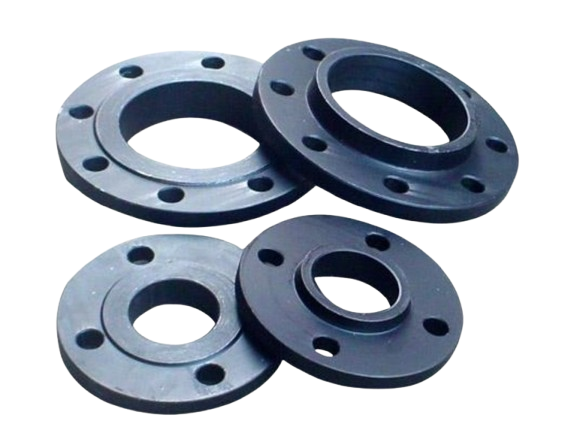

ms flanges
specifitcation table
| PARAMETER | MS FLANGES |
|---|---|
|
MATERIAL |
MILD STYLE |
|
GRADES |
IS 2062 / ASTM A36 |
|
SIZE RANGE |
1/2″ – 36″ |
|
PRESSURE RATING |
ASA D / E / F<BR> ANSI CLASS 150 / 300 / 600 |
|
THICKNESS |
AS PER STANDARD |
|
STANDARDS |
ANSI B16.5 / IS 6392 / DIN |
|
DRILLING |
ASA / ANSI DRILLING |
|
SURFACE FINISH |
BLACK / PAINTED |
|
FLANGES TYPES |
SLIP ON (SO), WELD NECK (WN),
BLIND (BL), SOCKET WELD (SW),
THREADED (TH), LAP JOINT (LJ) |
APPLICATIONS
INDUSTRIAL PROCESS POPELINES, OIL & GAS LINES, POWER PLANTS, HIGH-PRESSURE SYSTEMS

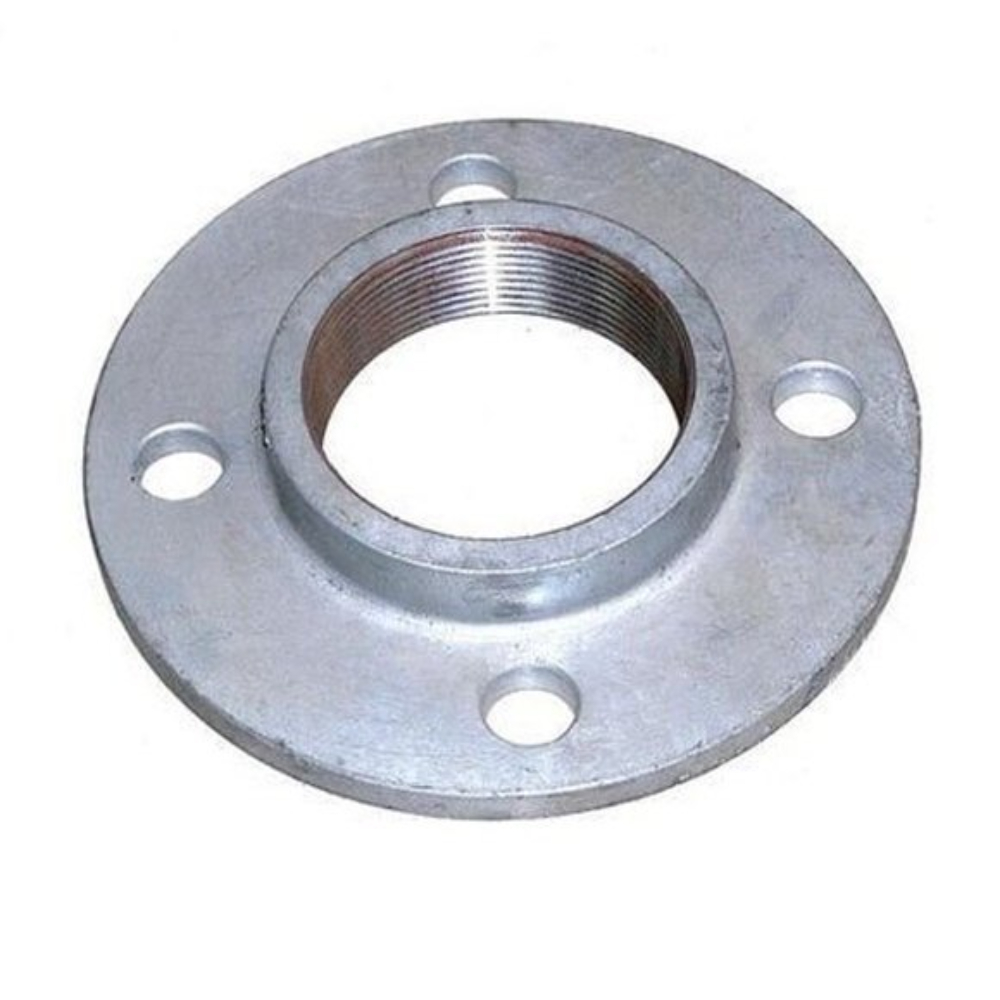

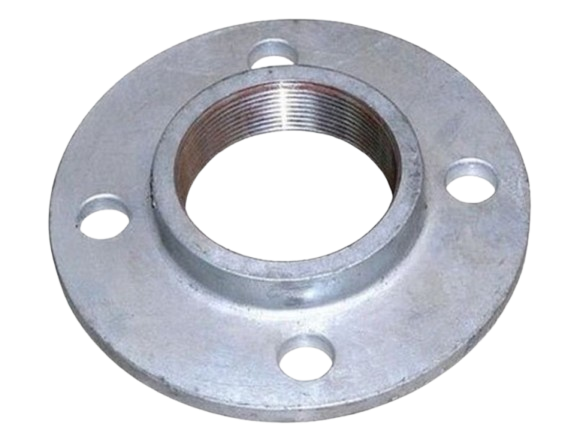

gi flanges
specifitcation table
| PARAMETER | GI FLANGES |
|---|---|
|
MATERIAL |
HOT DIP GALVANIZED |
|
GRADES |
IS 2062 (GALVANIZED) |
|
SIZE RANGE |
1/2″ – 24″ |
|
PRESSURE RATING |
ASA D / E / F<BR> ANSI CLASS 150 |
|
THICKNESS |
AS PER STANDARD |
|
STANDARDS |
ANSI B16.5 / IS 6392 |
|
DRILLING |
ASA / ANSI DRILLING |
|
SURFACE FINISH |
HOT DIP GALVANIZED |
|
FLANGES TYPES |
SLIP ON (SO),
BLIND (BL),
THREADED (TH) |
APPLICATIONS
Fire-fighting Pipelines, Water Supply & Distribution, HVAC Systems, Outdoor Utility Lines
gi flanges
specifitcation table

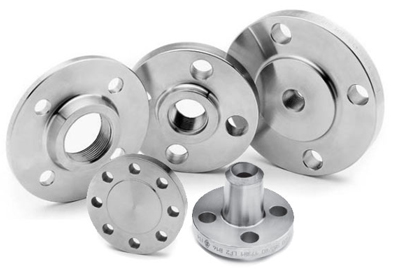

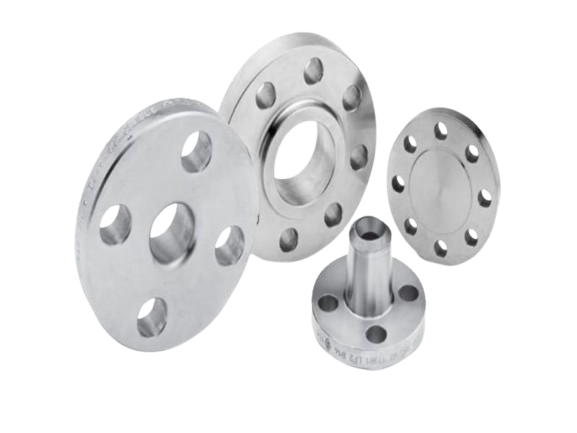

| PARAMETER | SS FLANGES |
|---|---|
|
MATERIAL |
Stainless Steel |
|
GRADES |
SS 202 / 304 / 316 |
|
SIZE RANGE |
1/2″ – 36″ |
|
PRESSURE RATING |
ASA D / E / F<BR> ANSI CLASS 150 / 300 / 600 / 900 |
|
THICKNESS |
AS PER STANDARD |
|
STANDARDS |
ANSI B16.5 / IS 6392 / DIN |
|
DRILLING |
ASA / ANSI DRILLING |
|
SURFACE FINISH |
Natural / Pickled |
|
FLANGES TYPES |
SLIP ON (SO), WELD NECK (WN)
BLIND (BL), SOCKET WELD ( SW),
THREADED (TH), LAP JOINT (LJ) |
APPLICATIONS
Chemical & Pharmaceutical Plants, Food & Dairy Pipelines, Corrosive & High-temprature Services
